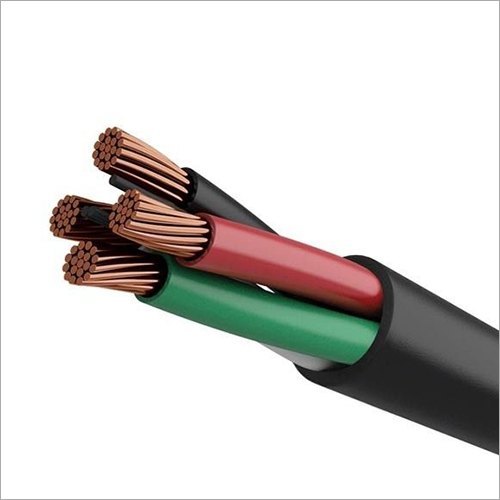

Unsheathed And Sheathed Cable(4 Core),"Size-80/.20mm"

Product Specification

* Unsheathed And Sheathed Cable(4 Core)

* "Size-80/.20mm"

* Nominal Area(sq.mm)-2.5

* Current Rating Amp-19

* Length Per Coil 100 Mts.

Application

The interior wiring of distribution boards and switchboards uses non-sheathed cables. To connect to mobile equipment, use the flexible cables. Single-core or multicore cables are sheathed cables.

Under the wiring regulations, unsheathed cable is referred to as "insulated cables (without sheath)," but in the industry, it is sometimes referred to as building wire or TPI (thermoplastic insulated) cable. What are the two distinct wire types, furthermore? Wires with a single conductor and a metal or plastic sheath are referred to as THW and THWN/THHN. The wires might be solid or stranded.

The best connections are made by solid-core wire, but because of its stiffness, routing through conduit is more challenging than with stranded wire. In the same vein, what is nonmetallic encased cable? Residential wiring uses nonmetallic-sheathed (plastic) wire, a form of covered electrical wire with at least two insulated and one bare conductor. Another name for Romex Non Metallic Sheathed is Romex Non Metallic Sheath.
