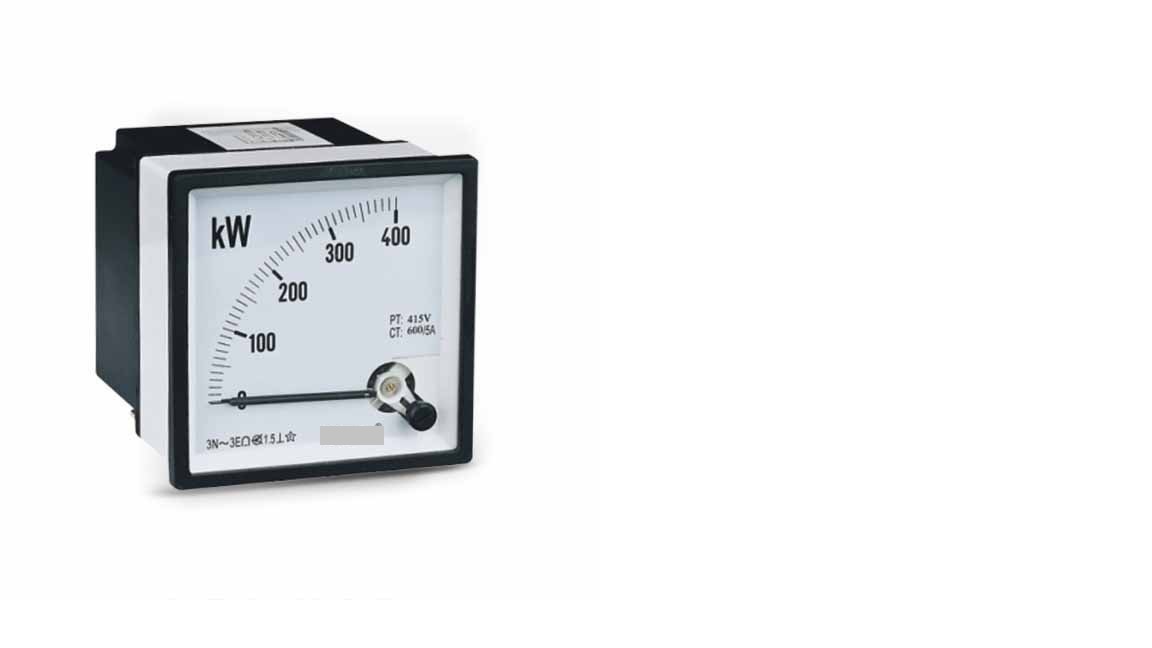

Panel Meter-415V-220KV, 250VAC/VDC

Product Specification

* PANEL METER415V-220KV

* 250VAC/VDC:PROCESS INSTRUMENT TYPE : PANEL METER RANGE

* OPERATING : 415V TO 220 KV RATING

* ELECTRICAL: 100 TO 250 VAC/VDC 3 PHASE

* CLASS: 0.5S, FOR MEASUREMENT OF ELECTRICAL PARAMETER:VOLTAGE, CURRENT

* FREQUENCY, POWER , ENERGY, FOR SYSTEM, COMPORT:RS485, STANDARD AS PER IEC 61326, SYSTEM PRIMARY VALUE CURRENT RATING:1 TO 9999 A

* SYSTEM SECONDARY VALUES: VOLTAGE RATING: 110 V

* CURRENT RATING: 1 TO 5 A, POWER FACTOR: -0.5 TO 0 TO +0.5, ENCLOSURE:IP54

* WITH PROGRAMMABLE PRIMARY VOLTAGE AND CURRENT TYPE/MODEL : 3P4W and 3P3WNOTE:Test Cerificate from NABL Accredited Lab and Warranty of Meter Must Accompany the Supply

Application

Easy to understand numerical information is presented by digital panel metres. They are a cheap way to present data from instrumentation like thermocouples, humidity, and pressure sensors, and are widely used in process control equipment.
