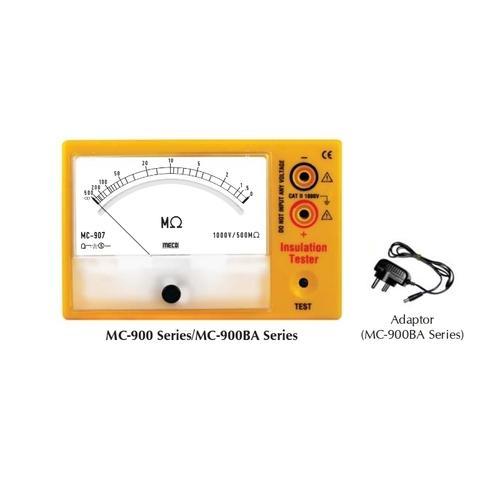

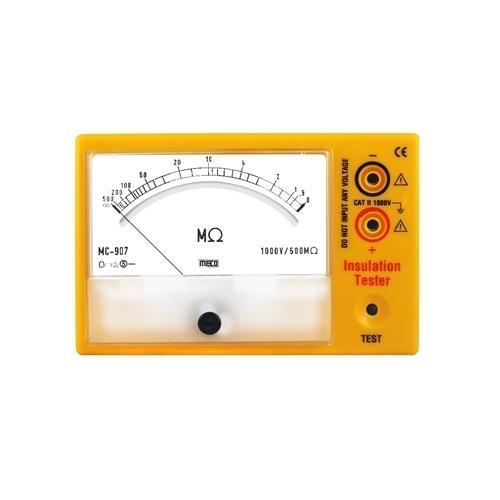

Insulation Tester Analog - Model:MC-941BA , Test Voltage DC:500 v

Short Description:
A high voltage, low current DC charge is used by insulation testers to measure the resistance in wires and motor windings in order to find current leakage and defective or damaged insulation, which can result in arc faults, blown circuits, and the possibility of electrical shock or fire.
Manufacturer MECO
Place Of Origin India
Return Returnable Product
1 week
₹ 3,287.00
Old price: ₹ 3,615.70

GST @18% Inclusive Price: 3878

Product Details:

Power 9V (6 x 1.5V AA) Battery
Operating Temperature 0 Degree to 50 Degree C
Brand Meco
Condition New
Model MC-941BA
Range 0-1000MOhms
Test Voltage DC 500 V
Accuracy +- 5% of Indicated Value at 27 Degree C +- 5 Degree C
Relative Humidity 80% Maximum
Dimensions 144.5 x 95 x 72.5 mm (approx.)
Weight 438.6 gms Including Battery (approx.)
Dielectric Strength 3.5 KV @ 50Hz for 1 min. between Input Terminals & Case
Insulation Resistance More than 50M Ohm at 500V between Circuit & Case
Storage Temperature -10 Degree C to 60 Degree C

Features:
  • Single Person Push Button Operation
  • High Accuracy  5% of Indicated Value in Effective Range
  • Scale Length : 80 mm (approx)
  • Terminal Voltage : > 85% of Rated Voltage for Insulation Resistance
  • Measurement from 10% to 100% of the Insulation Resistance Range
  • ABS Resin Yellow Case with Polycarbonate Meter Front Cover
  • Meets Requirement of IEC 61010, Installation Category II, 1000 V Phase Earth
  • Designed to Generally Confirm to IS 10656-1983
  • 7 Models with various Voltage to MOhm Ranges
  • Battery Adaptor (Optional) for MC-900BA Series

Applications:
  • Electrical Equipment (Motors, Transformers, Machine, etc)
  • Cables for Communication Networks
  • Industrial, Commercial & Residential Installations
  • Electrical Cables for Distribution Networks
  • House Hold Appliances (Washing Machines, Mixer, Toaster etc.)
