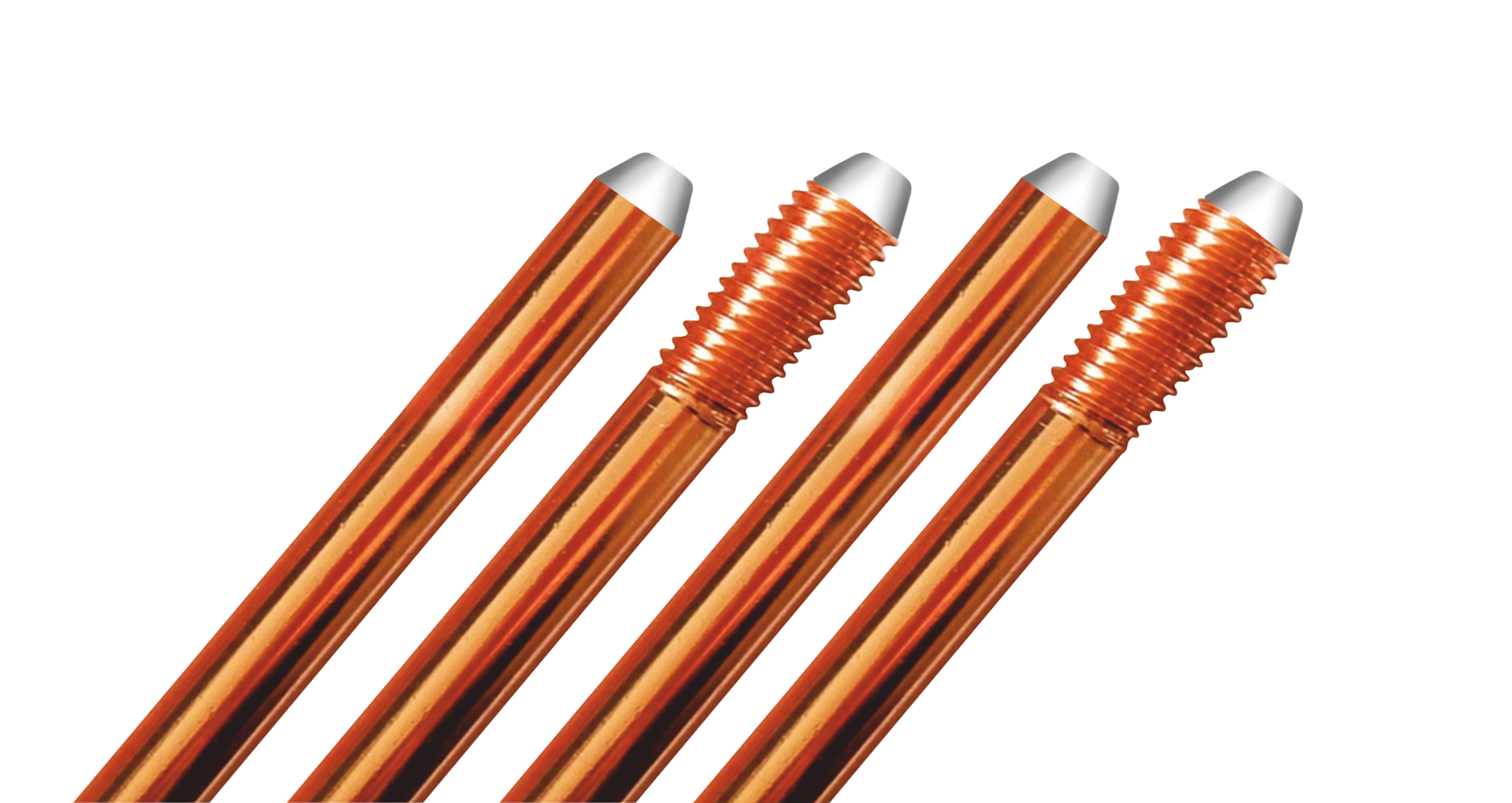

Copper Bonded Earthing Electrode

Product Specfication

*Low earth resistance & High Conductivity.

*Weatherproof & Highly durable.

*Protection against static electricity from friction.

*Length 3000mm

*Dia 58mm

*Prevents static charge and stray current accidents.

*Authorize any systems fault on the ground to be quickly isolated.

*Multi directional dissipation of current.

Application

Copper Bonded Electrode is a highly advanced product, which is based on global technology and provides superior resistance against oxidation; it also has better product life than a simple GI Electrodes. Its uniformly coated thickness ensures stable performance, making it a cost effective option for users.

Copper Bonded Earthing Electrode is considered to be the most apt equipment for Earthing purpose owing to excellent resistance to oxidization. The main copper coated earthly electrode is saved by the copper bonding from corrosion and the crystalline mixture which is filled within the electrode.

Designed on the principle of Pipe-in-Pipe technology, we coat copper earth electrode using 100/250 micron of copper. With a crystalline mixture, the annular space between the inner conductor and the external conductor is filled. After that, it is sealed cautiously from both the ends. It has been used due to the anti corrosive and extremely conductive nature of crystalline mixture. It also offers low impedance grounding that is necessary for protecting transmitting facilities as well as personnel from any kind of internal or external electrical inconsistencies.
